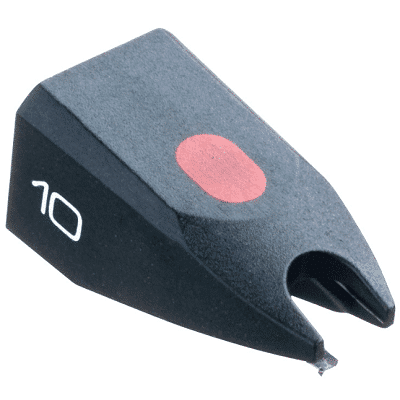

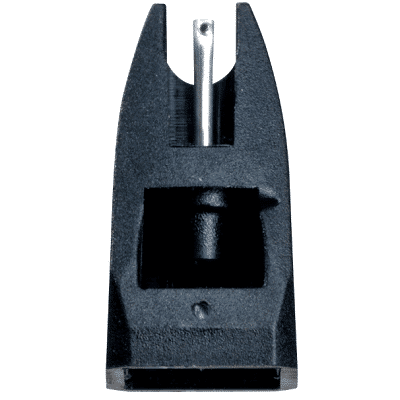

Ortofon Stylus 10 Replacement Stylus

Description Head Ortofon STYLUS 10 Replacement stylus with elliptical needle for Super OM 10, OM 10, OMP-mount 10, OMBulk 10, OMT 10, LM 10, Concorde 10, Concorde EC 10, Concorde STD, TM 10H, LMB 12, SMB cartridges 12, LMA 12. Data Sheet Frequency range: 20-24.000Hz Frequency response: 20-20.000 Hz 3 / – 1 dB Tracking capacity at 315Hz at recommended tracking force *): 70 µm Compliance, dynamic, lateral: 20 µm/mN Stylus type: Elliptical Stylus tip radius: r / R 8/18 µm Tracking Force Range: 1,25-1,75g ​​(12,5-17,5mN) Tracking force, recommended: 1,5 g (15 mN) Tracking angle: 20° Stylus Color: Black
